eosim::statics::Histogram Class Reference
[Data Collectors]

#include <eosim/statics/histogram.hpp>

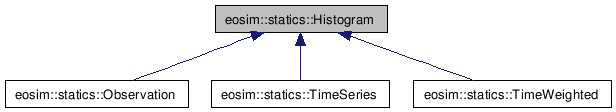

Inheritance diagram for eosim::statics::Histogram:

[legend]List of all members.

---

Detailed Description

Abstract Histogram.

Author:

Sebastián Alaggia

Version:

1.1.0

Date:

2005

This is the parent class of all Histograms. It contains the basics operations of all histograms but you can’t use it directly. Histograms store punctual values, but the pair (x1, y1) is logged and then the pair (x1, y2) is logged the histogram record the pair (x1, y1 + y2).

Public Member Functions
virtual	~Histogram ()
	The destructor of Histogram.
void	reset ()
	This operation erases every value registered in the histogram.
void	print (unsigned int cantCell)
	This operation prints the histogram in the standard output. cantCell indicates how many bars have you histogram.
void	print (unsigned int cantCell, const char *path)
	This operation prints the histogram in path file. cantCell indicates how many bars have you histogram.
void	table (unsigned int cantCell)
	This operation prints a table with the values stored in the histogram in the standard output . cantCell indicates how many rows have you table.
void	table (unsigned int cantCell, const char *path)
	This operation prints a table with the values stored in the histogram in path file.
bool	empty ()
	This operation returns 1 if the histogram is empty.
double	getVariance ()
	This operation returns the variance registered in the histogram.
double	getMean ()
	This operation returns the mean value registered in the histogram.
std::string	getName ()
	This operation returns the histogram’s name.
Protected Member Functions
	Histogram (std::string name)
std::string	printH (unsigned int cantCell, bool graphic)
	This is an auxiliary operation used to print histograms.
void	log (double x, double y)
	This operations register x and y in the histogram.
Protected Attributes
double	count
double	total
double	sosq
std::map< double, double >	cell
std::pair< double, double >	min
std::pair< double, double >	max
std::string	name

---

Member Function Documentation

string Histogram::printH	(	unsigned int	cantCell,
		bool	graphic
	)			[protected]

This is an auxiliary operation used to print histograms.

Basically the operations Histogram::table and Histogram::print are wrappers for this operation.

Note:

This is an auxiliar operation of Histogram::table and Histogram::print. This an expensive operation, because it has to go through all logged observations.

If cantCell is less or equal than zero, the values stored in the histogram won't be shown.

Bug:

There was a bug when the histogram is printed, more specifically when an auxiliar vector (used to print the histogram) is assigned. This bug is corrected.

Note:

If the histogram is empty no data will be shown.

void Histogram::log	(	double	x,
		double	y
	)			[protected]

This operations register x and y in the histogram.

Note:

The histogram store punctual values, but if an two pairs with the same x-value are logged, the pair stored records the sum of y-values.

double Histogram::getVariance

(

)

This operation returns the variance registered in the histogram.

Note:

If the histogram is empty, the variance returned is 0.

double Histogram::getMean

(

)

This operation returns the mean value registered in the histogram.

Note:

If the histogram is empty, the variance returned is 0.

---
